MEASURING TOOLS FOR SALE This is a list of measuring tools for sale. Some of them will have a button to click to see a picture. Instead of having to load each image to continue, just scroll this list and click to see an image.

This section has Squares, Bevel Squares, Angle Dividers, Marking Gauges, Machinist Tools, Trammels, Rules and Tape Measures
Note: I have a Tool Order Form that goes through a secure server and will be encrypted when you return it. So, it is safe to give credit card information. Just click on Click To Order in any section, or right here.

Note: I have a New Measuring Showcase that has thumbnail pictures and descriptions of some interesting planes. I also have information of some that have been sold. I am breaking up the Showcase into separate categories to make it easier to use. Click here to go to the Measuring Showcase

Back To Tool Index Back to Homepage

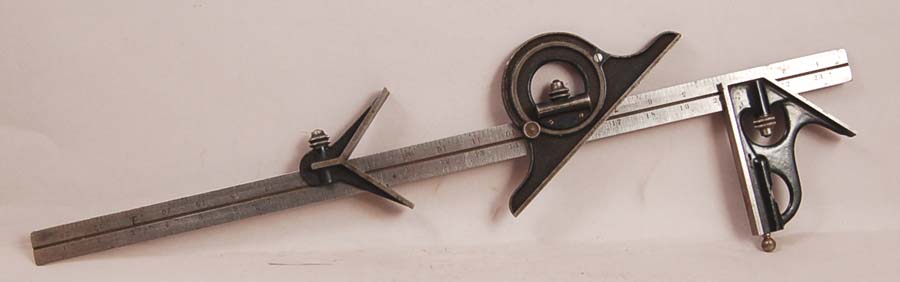

1. UNION COMBINATION SET, NO. 615 - 12 INCH. Seems to be from the 1940's. Hardened rule. Has the level bubbles and scribe. Virtually all of the Black enamel remains. Some slight stain from storage. In the original box, which is a little rough, Fine+ ........ $110.00

2. FITCHBURG TOOL CO., 12 INCH COMBO SQUARE, Has level and a scribe. G+ ........ Sold $20.00

3. L. S. STARRETT PROTRACTOR HEAD and RULE, Early protractor head with the Aug 7, 1883 patent date. Pre-1900 Starrett logo on the rule, G+ ........ Sold $40.00

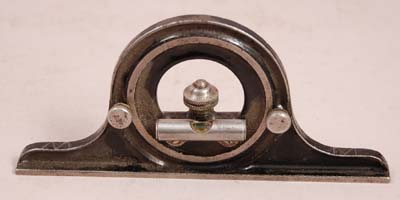

4. BROWN & SHARPE PROTRACTOR HEAD For combination square. Reversible, so, it can be used on both sides, which comes in handy. Has a level on the other side that can't be seen in the picture. 97% smooth black finish, Fine ........ Sold $30.00

5. STANLEY RULE & LEVEL CO., NO.1, Improved Try Square, 6 inch, ungraduated, rosewood filled cast iron-framed handle, ca. 1880, G+ ..................Sold $50.00

6. STANLEY NO. 1, Try & Miter Square, 6 inch size, Sweetheart mark on the blade, most of the nickel-plating remains, G+ ........ Sold $25.00

7. STANLEY NO. 12, Improved Try Square, 8 inch size. Made in USA cast in handle. Made in Can. stamped on the blade. Black iron frame and blued blade, Fine ........ Sold $30.00

8. STANLEY NO. 12, Improved Try Square, 12 inch size. An earlier one that's a bit dirty, but has quite a bit of nickel plating remaining, G+ ........ Sold $40.00

9. STANLEY NO. 12, Improved Try Square, 12 inch size, early (1880s) nickel-plated cast iron w/ Stanley cast in the handle, some remnants of gray paint because someone painted it at one time, G+ ........ Sold $35.00

10. STANLEY NO. 15, Try and Miter Square, 7 1/2 inch size, The SR & L logo dates this one to around 1915. 90% of the nickel plating remains, G+++ ........ $35.00

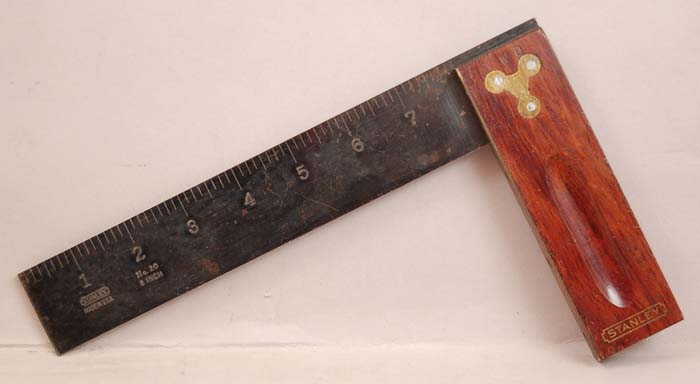

11. STANLEY NO. 20, Try Square, 6 inch size, Notched-rectangle mark on the blade, rosewood handle, brass trim, Fine ........ Sold $25.00

12. STANLEY NO. 21, Try Square, 9 inch size, nickel-plated cast iron w/ slot in the blade, G+ ........ $40.00

13. STANLEY FOUR SQUARE TRY &: MITRE SQUARE, 7 inch combination square, Sweetheart mark and pat 1-23-17 stamped on the blade, 98% of the japanning and remnants of the foursquare decal remain, G+ ............................ Sold $45.00

14. HENRY DISSTON & SONS, 10 inch Try Square, English and Metric graduations, brass-plated rosewood handle, G++ ........ Sold $55.00

    Framing Squares [CLICK TO ORDER]

    1. SOUTHINGTON HDW. CO., TAKE-DOWN SQUARE, Copyright 1912. Tightened with a big screw-slotted cam. Tapered ends. Essex (board measure), octagon and brace scales, G+ .......... $75.00

    2. RUSSELL & ERWIN MFG. CO. FRAMING SQUARE, Tapered blade, board foot and brace tables. Some pitting, but legible, G+ .......... $40.00

    3. SOUTHINGTON HARDWARE CO. FRAMING SQUARE, Tapered blade, board foot tables. Some pitting, but legible, G .......... Sold $25.00

    4. SOUTHINGTON CUTLERY CO., 6 inch framing square, G++ ........ Sold $30.00

    Bevel Squares [CLICK TO ORDER]

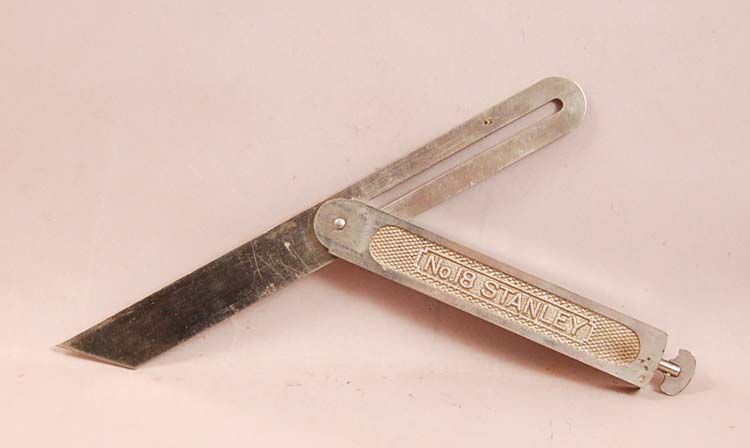

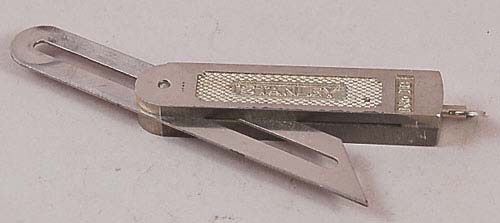

    1. STANLEY NO. 18, EUREKA FLUSH T BEVEL, 6 inch, STANLEY logo cast in body, 95% of the nickel plating remains, Fine ........... Sold $40.00

    2. STANLEY NO. 18, EUREKA FLUSH T BEVEL, 6 inch, STANLEY logo cast in body, Most of the nickel plating remains, except the sides have been sanded. It came from a patternmaker's tool box, so it may have been done for precision, Fine ........... Sold $25.00

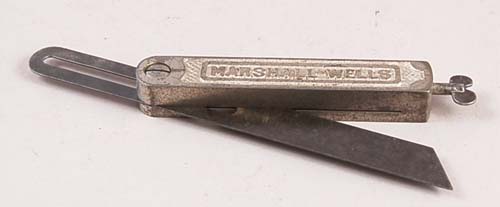

    3. MARSHALL WELLS, 6 inch bevel. Cast iron. Large logo cast in the frame. Made by Disston, Pat Oct 29, '07 stamped on the frame, G++ ......... $40.00

    4. STANLEY NO. 18, EUREKA FLUSH T BEVEL, 8 inch, STANLEY logo cast in body, 90% of the nickel plating remains, Fine ........... $40.00

    5. STANLEY NO. 18, EUREKA FLUSH T BEVEL, 8 inch. Has the 7-14-(19)08 patent date cast in the body. 90% of the nickel plating remains, Fine ........... $40.00

    6. MARSHALL WELLS, 8 inch bevel. Cast iron. Large logo cast in the frame. Made by Disston, Pat Oct 29, '07 stamped on the frame, G+ ......... $30.00

    7. DISSTON BEVEL SQUARE - 10 INCH, Just about exactly like the Stanley No. 18. 95% nickel plating, Fine ........... $40.00

    8. STANLEY NO. 18, EUREKA FLUSH T BEVEL, 10 inch, STANLEY logo cast in body. 90% of the nickel plating remains, G+ ........... Sold $35.00

    9. STANLEY NO. 25, 6 inch Sliding T bevel. Early one with the 3-16-(18)97 patent date on the blade. In great condition, G++ ........... Sold $30.00

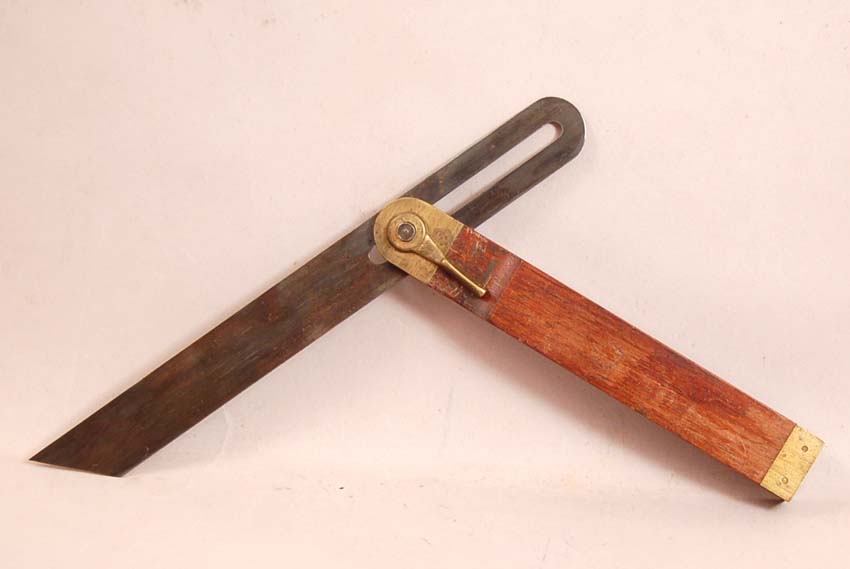

    10. STANLEY NO. 25, 8 inch Sliding T bevel. Rosewood handle. Notched-rectangle logo on the blued blade. STANLEY in gold on the rosewood body, Fine+ ........... $35.00

    11. STANLEY NO. 25, 10 inch Sliding T bevel, Made by Stanley, but not marked. It was probably sold by another company, Fine ........... $25.00

    12. STANLEY NO. 25, 12 inch Sliding T bevel, Rosewood handle, Has the circular patent date stamp which is only partially visible, but dates it to around 1880. Crisp rosewood handle with brass trim, G++ ........... $70.00

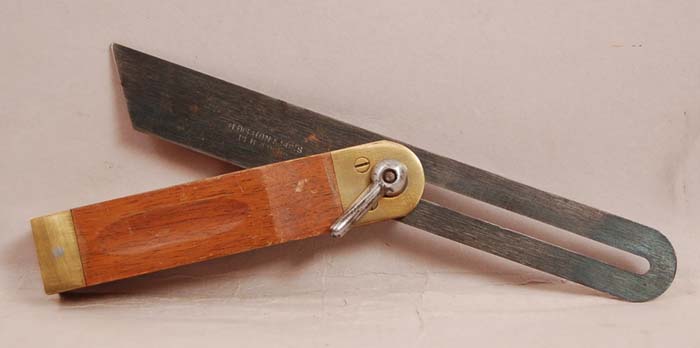

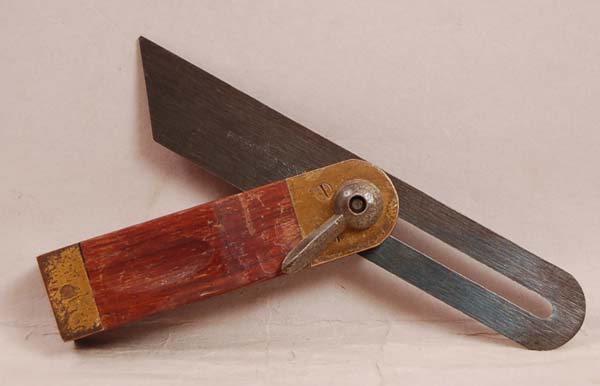

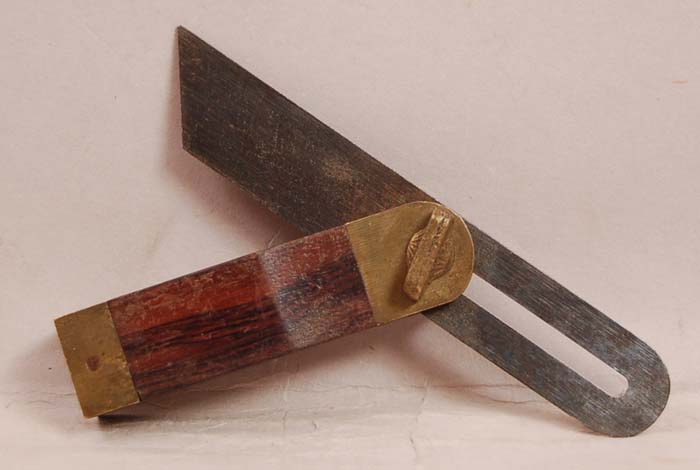

    13. H. DISSTON & SONS, 6 inch bevel, Fine+ ............ $30.00

    14. ZENITH 6 inch bevel, made by DISSTON. Similar to the Stanley No. 25, G+................. $20.00

    15. SOUTHINGTON HARDWARE, 12 inch Sliding T bevel,Beech handle, brass trim, G++ ........... $25.00

    16. STANLEY DEFIANCE, Sliding T bevel, Blued steel. Virtually all of the original finish remains, Fine ........... $20.00

    Angle Dividers [CLICK TO ORDER]

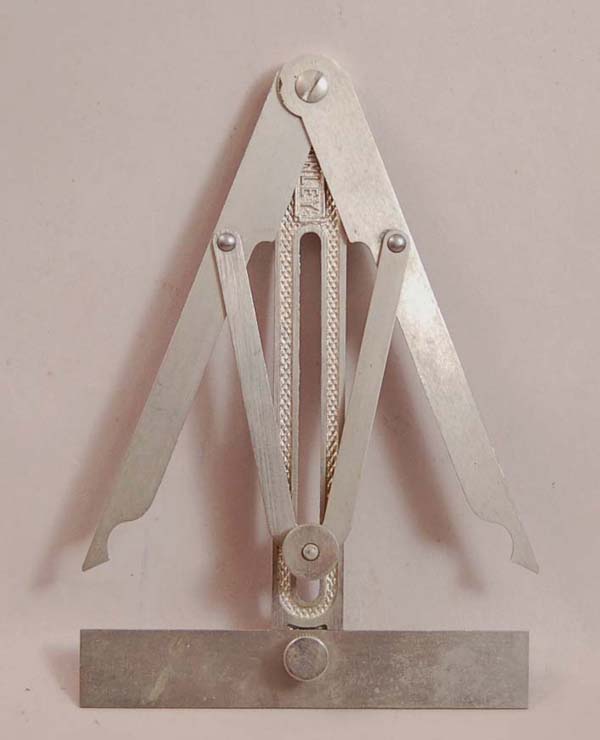

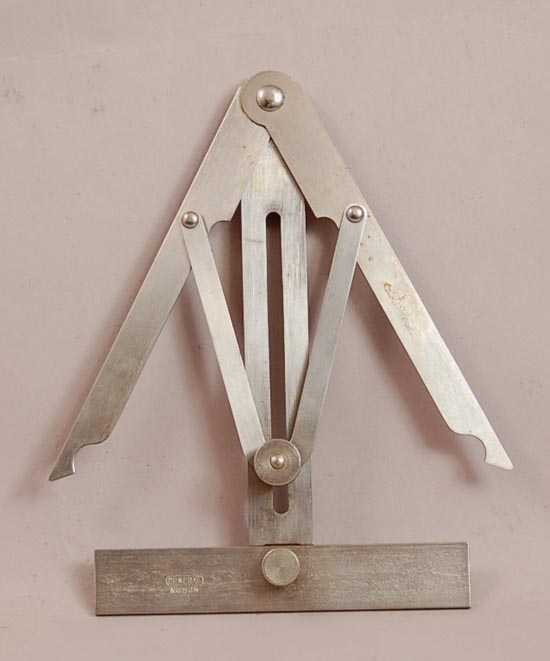

    1. STANLEY NO. 30 ANGLE DIVIDER, Notched rectangle logo on the cross-bar. Used to divide or bisect an angle where two boards need to be cut to fit, or layout 4, 5, 6,8 and 10 sided figures. 99% of the nickel-plating remains, with some dirt, Fine ..... $110.00

    2. STANLEY NO. 30 ANGLE DIVIDER, Notched rectangle logo on the cross-bar. Used to divide or bisect an angle where two boards need to be cut to fit, or layout 4, 5, 6,8 and 10 sided figures. Has some minor rust and stain, Fine ..... $100.00

    3. STANLEY NO. 31 ANGLE DIVIDER, the early model with a rosewood body. This model didn't have the cross-bar at the bottom, it is complete. Script logo on the blade. Has almost all of its nickel plating. A. J. Gilliam stamped his name on it a couple of times, but this is a very nice example of a rare tool, G++ ..... $195.00

    Marking Gauges [CLICK TO ORDER]
    1. ROBERTSON MORTISE GAUGE, Sheffield. Heavy English construction ebony? and brass gauge.It is crisp and uncleaned with some stain on the round brass stem, G+++ .............. $100.00

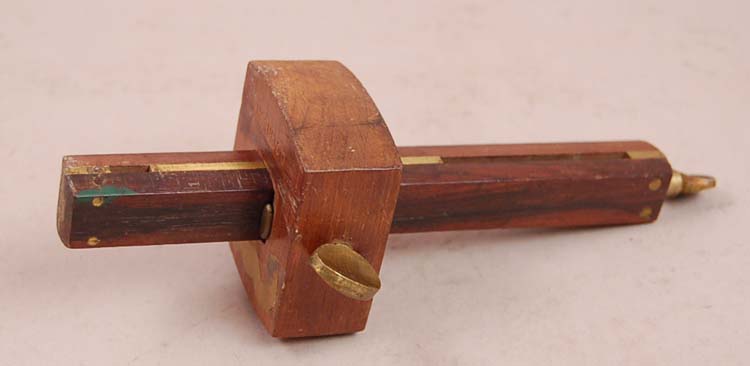

    2. ROSEWOOD MORTISE GAUGE, This one is made from rosewood with brass trim. Although it is unmarked, the bulls-eye trim decoration was used by the Chapin Stephens firm. It is in overall very crisp condition with some scuffs along the top of the stem from tightening the fastening screw. Has two brass bars on the face and a brass wear plate on the stem, G+ .............. $50.00

    3. BOXWOOD MARKING GAUGE, Although it is unmarked, it looks like it was made by Chapin Stephens. Some minor stain, G++ .............. $30.00

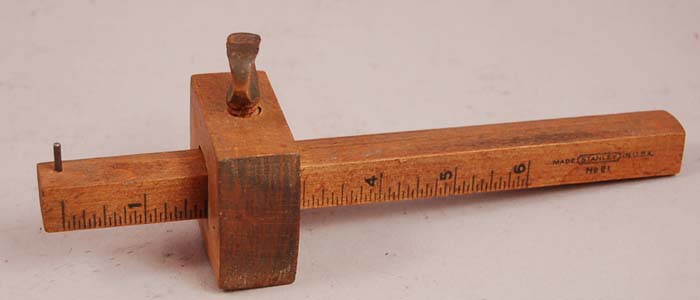

    4. STANLEY NO. 61, MARKING GAUGE, Beech with plastic thumbscrew. Made in USA logo on the bar. It has a little patina, but it's very crisp, Fine ............ $15.00

    5. STANLEY NO. 61, MARKING GAUGE, Beech with beech thumbscrew. Notched-rectangle logo on the bar. It is crisp but a bit dirty, Fine ............ $20.00

    6. STANLEY NO. 65, MARKING GAUGE, Boxwood. Notched rectangle logo on the stem. Nice, but has a 1/4 inch flake off of the side of the head (shown), G++ ............ $30.00

    7. STANLEY NO. 65, MARKING GAUGE, Beech. Made in USA logo on the stem with patent numbers. This is the later model that has the triangular head and stem. You can angle the point and drag it to prevent tear-out. There are a few small chips around the bottom of the point, which is a replacement made from a drill bit, Fine ............ $30.00

    8. STANLEY NO. 71, MARKING AND MORTISE GAUGE, Beech. Sweetheart logo on the stems. Brass plated on the head and points. Crisp but a little dirty from 70 years, Fine ........ Sold $50.00

    9. STANLEY NO. 72, MARKING AND MORTISE GAUGE, Beech. Sweetheart logo on the stems. This one has had very little use. It is crisp but has some scuffing on the face, and on the stems from the screw, G++ ............ $45.00

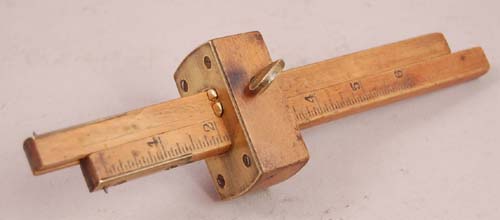

    10. STANLEY NO. 73, MORTICE GAUGE, Boxwood and brass, 6 1/2 inches long. Unmarked but definitely made by Stanley. Graduations to three inches for the slide. A crisp example except for a small chip on the bottom of the head, G+ .......... $55.00

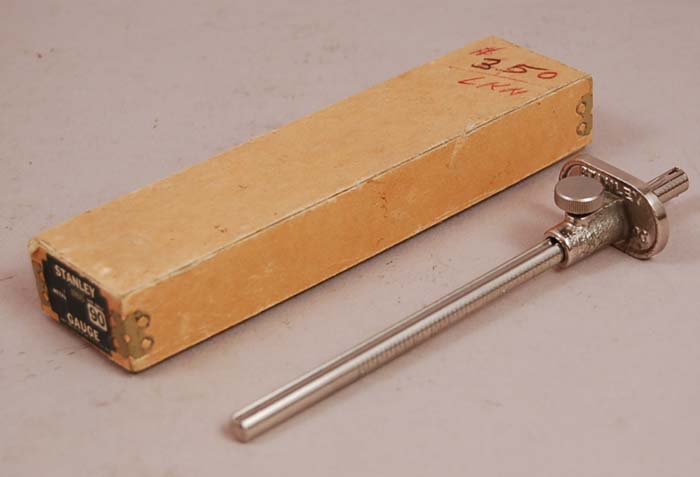

    11. Boxed STANLEY NO. 90 MARKING GAUGE, One adjustable arm. 98% nickel plating remains. In the box, Fine ............ $40.00

    12. STANLEY NO. 90 MARKING GAUGE, One adjustable arm with graduations. 93% nickel plating remains. Could use a light cleaning, G+ ............ $30.00

    13. 19th CENTURY MARKING GAUGE, Craftsman-made. One adjustable arm. Has some of the fancy details from that era, G+ ............ Sold $35.00

    14. Boxed STANLEY NO. 91 MARKING & MORTICE GAUGE, Two graduated adjustable arms with points. WW II vintage. Almost all of the japanning remains. The cadmium plating has some discoloration. The original box has a bit of tape on one front corner, Fine ............ Sold $55.00

    15. Boxed STANLEY NO. 95 BUTT GAUGE, Used for laying out door hinges. It's also useful as a marking gauge. 99% of the nickel plating remains. In the original box with instructions, Fine+ ............Sold $45.00

    16. Boxed STANLEY NO. 95 BUTT GAUGE, Used for laying out door hinges. It's also useful as a marking gauge. 95% of the nickel plating remains. I will include a copy of the instructions, G++ ............ $35.00

    17. STANLEY NO. 95 BUTT GAUGE, Used for laying out door hinges. It's also useful as a marking gauge. 70% of the nickel plating remains, G+ ............ $15.00

        Note: I have a Stearns No. 85 Butt Gauge listed below, that does the same thing as the Stanley No. 95

    18. STANLEY NO. 97, MARKING GAUGE One side of the arm has the usual points, the other, the round wheel for marking difficult grain. 70% nickel plating remains, G+ ........ Sold $30.00

    19. In the Box STANLEY NO. 98, MARKING AND MORTISE GAUGE One side of the arms have the usual points, the other, the round wheels for marking difficult grain. The arms set individually for a marking gauge, or to use for a mortise gauge. 97% nickel plating remains. The early S. R. & L.box is pretty nice, Fine+ ........ Sold $120.00

    20. STANLEY NO. 98, MARKING AND MORTISE GAUGE One side of the arms have the usual points, the other, the pizza-wheels for marking difficult grain. The arms set individually for a marking gauge, or to use for a mortise gauge. 90% nickel plating, G++ ........ Sold $50.00

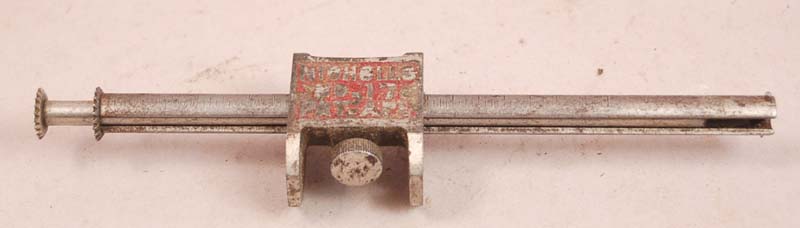

    21. NICHOLLS NO. 17 MARKING AND MORTISE GAUGE, Cast iron. Patented on July 25, 1911 by Albert Harvie. One side has a point and the other has two toothed rollers, G+ ........... $65.00

    22. LEAVITT MACH. CO. ROLLER GAUGE, Double arm. Not marked by the mfr, only Pat'd June 12, 1888 stamped on head .These are very high quality, with the pizza-wheel cutters. 80% of the nickel plating remains, G+ ............. $35.00

    23. STEARNS NO. 85 BUTT GAUGE, nickel-plated cast iron, G+ ....................... Sold $25.00

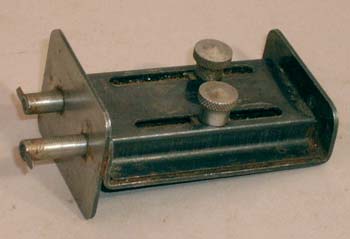

    24. GOODELL PRATT NO. 227 BUTT GAUGE, Like the Stanley No. 95. Can be used for hinge layout and also be used as a marking gauge. This is probably made before Millers Falls bought out the company in the mid-1930s. Blued finish, G+ ............ Sold $20.00

    Caliper Squares [CLICK TO ORDER]

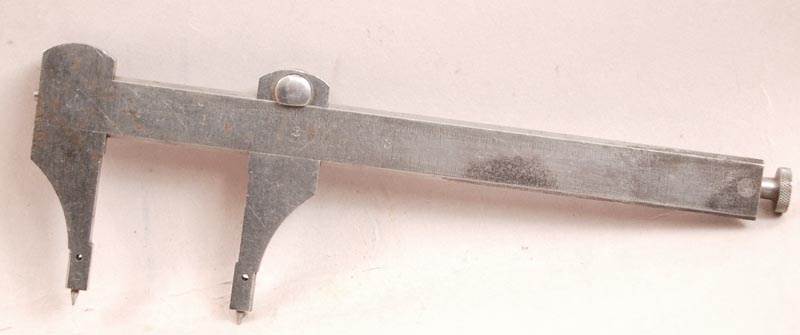

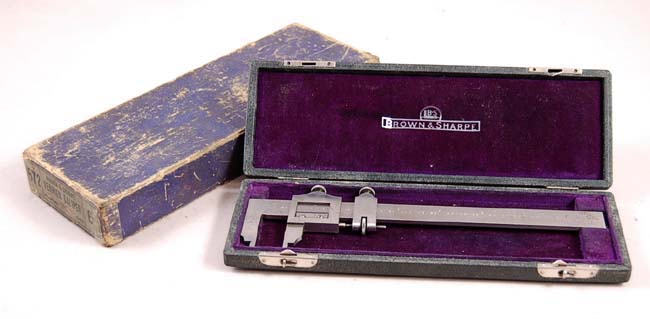

    1. BROWN & SHARPE MFG. CO., NO. 572 VERNIER CALIPER SQUARE, 6 inch, English and Metric. Marked "defective finish". In the case with instructions, in the original box. There is a bit of rust on each end from touching the case, Fine .......... Sold $60.00

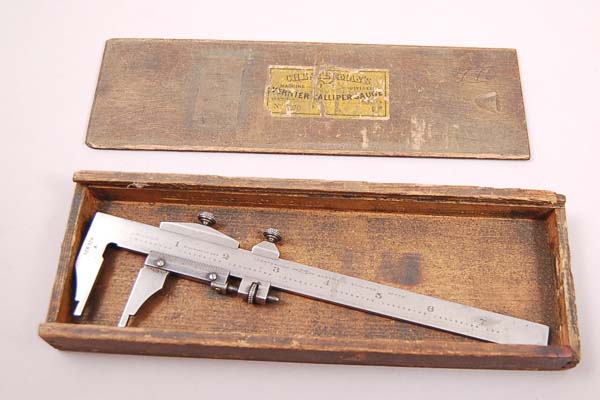

    2. CHESTERMAN'S VERNIER CALIPER SQUARE, 7 1/4 inch, Caliper reads thousandths. In it's original wooden box, G+++ .......... Sold $85.00

    3. BROWN & SHARPE MFG. CO., NO. 5 VERNIER CALIPER SQUARE, 13 inch, G++ .......... Sold $65.00

    Machinist's Tools [CLICK TO ORDER]
    CLICK HERE FOR A LIST OF LEGS CALIPERS FOR SALE

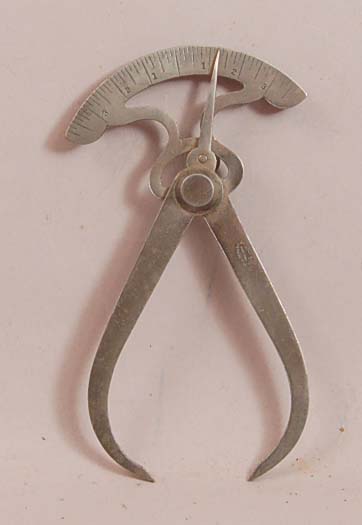

    1. J. STEVENS & CO. 4 INCH THREAD CALIPER, the company that made firearms and precision tools. Earlier logo. Marked Pat. Nov. 20, 1883, that's the Warfield patent, G+ ........ $60.00

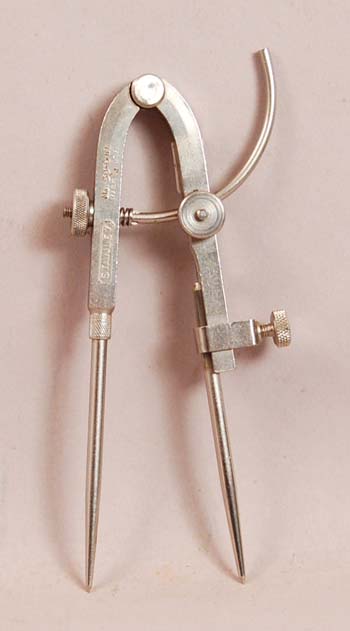

    2. P. S. & W. (PEXTO), 8 Inch DIVIDERS, A point may be removed to use a pencil, G+ ........................ Sold $30.00

    3. 18 Inch EXTENSION DIVIDERS, Unmarked by Mfr., but like an early version of the Starrett No. 85. It looks like the Copeland 1887 patent. Starrett's patent was in 1889.
       The points can be adjusted for length, and a pencil substituted for one leg. There is a brazed area on the wing by the spring. I don't know how it could have been broken, and I see no reason why it won't hold during use, G++ ......... $60.00

    4. BROWN & SHARPE NO. 840, Combination Caliper and divider. 10 inch length. The arms are provided with split chucks to receive the auxiliary arms. Has the divider points and large caliper legs. Earlier two-line mark on the body, G+++ ........... $75.00

    5. DIVIDERS, Unmarked by Mfr. 13 1/2 inch. Early style with chamfered edges. Nickel plated, Fine ........... Sold $85.00

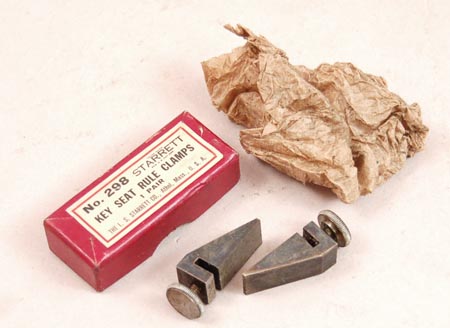

    6. L. S. STARRETT. NO. 298 KEY SEAT RULE CLAMPS, Clamps on a rule or straight-edge for scribing parallel lines on round work. In their box, with some tape, Fine ....... sold $15.00

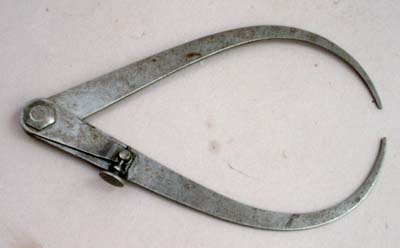

    7. L.S. STARRETT CO., 8 Inch inside/outside Calipers. Firm joint with fine adjustment. April 16, 1901 patent date, G+ ........................ Sold $15.00

    8. L. S. STARRETT. NO. 57, 9 inch Universal Surface Gauge, Still has almost all of its shiny japanning, G++ .................. Sold $45.00

    Trammel Points [CLICK TO ORDER]
    1. GOODELL PRATT TRAMMEL POINTS. Four inch points on a 16 inch steel bar, G+ ...... $45.00

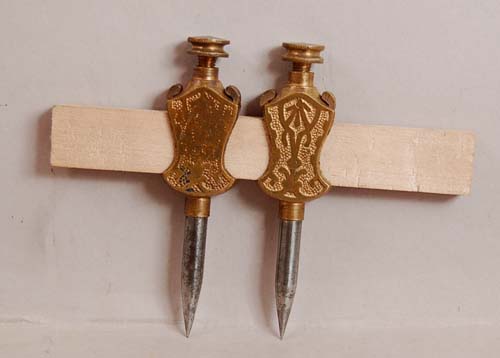

    2. STANLEY NO. 2 TRAMMEL POINT. Sweetheart logo on the point. The medium-sized brass trammel with cross-hatch design. In brand-new, original condition. Use this one as a third point to draw an ellipse, Or, if you already have one, make a pair, Fine++...... $40.00

    3. K & E NO. 9155 "MERCURY" BEAM COMPASS, 12 inch beam. A beam compass with fine-adjustment and a pencil and inking point. In the box with extra leads, Fine+ ...... $45.00

    4. Boxed STANLEY NO. 4 TRAMMEL POINTS. Japanned model. Has a screw slot to attach a pencil. About 3 1/2 inches long. In the original box with pop-up display, which is a little rough, Fine + ......Sold $55.00

       Rules and Tape Measures [CLICK TO ORDER]

       1. STARRETT, NO. 386, STRAIGHT EDGE, Three-foot. 1 3/4 inches wide. Beveled on one edge. Tempered. It has a few spots of pitting on the top, G+ ........... $45.00

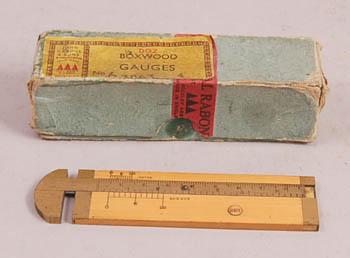

       2. RABONE BOXWOOD CALIPER GAUGE (RULE), In the original box. The box has number 63863, and the rule has number 257. 4 1/2 inches overall length. I'm not sure exactly what it is, but it is a vernier caliper rule that reads in MM and inches. The vernier will apparently read in thousandths. New old stock, Fine+ ........... $90.00

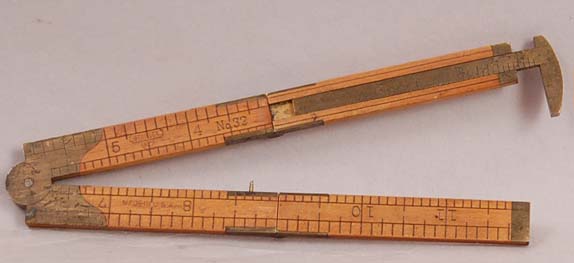

       3. STANLEY, NO. 32, CALIPER RULE, One-foot, Four-fold, brass-bound boxwood rule with brass caliper Sweetheart logo. It is crisp with some wear to the lacquer on the brass, Fine ........... $60.00

       4. KEEN KUTTER, NO. 360 1/2, CALIPER RULE, (Stanley 36 1/2) Sweetheart logo. ca. 1930. One-foot, two-fold boxwood rule with brass trim. Graduated in 8ths, 10ths, 12ths, and 16ths, G+ ........... $30.00

       5. STANLEY, NO. 36, CALIPER RULE, Sweetheart logo. ca. 1930. six-inch, Two-fold boxwood rule with brass trim, Fine ........... $45.00

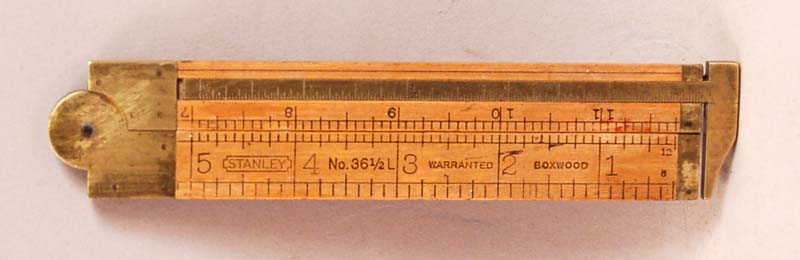

       6. STANLEY, NO. 36 1/2 L, CALIPER RULE, Notched-rectangle logo. ca. 1950. One-foot, Two-fold boxwood rule with brass trim. Very slight bow (1/32 in.) when the rule is closed, Fine ........... $35.00

       7. STANLEY, NO. 36 1/2 R, CALIPER RULE, One-foot, Two-fold boxwood rule with brass trim. Notched-rectangle logo, G+ ........... $35.00

       8. STANLEY, NO. 36 1/2 R, CALIPER RULE, One-foot, Two-fold boxwood rule with brass trim. Marked SECOND in red letters, G++ ........... $20.00

       9. STANLEY, NO. 69, FOLDING RULE, One-foot, four-fold, G+ ........... $30.00

       10. KEEN KUTTER, NO. KK-840, FOLDING RULE, (Like the Stanley 84) Two-foot, four-fold. Half-bound boxwood rule with drafting scales. Graduated in 8ths, 10ths, 12ths and 16ths, with architect's scales, G+ ........... $45.00

       11. INTERLOX NO. 104, 4 FOOT INSIDE-OUTSIDE RULE, One side is for inside measurement, the other is a four-foot rule. Graduated in 16ths, Fine ................... $25.00

       12. STANLEY NO.167 BRICK MASON'S ZIG ZAG RULE, 6 foot zig zag rule. Graduated in 16ths on one side, and the other has scales to gauge the height of courses of bricks to ensure uniform mortar thickness, G++ ................... $20.00

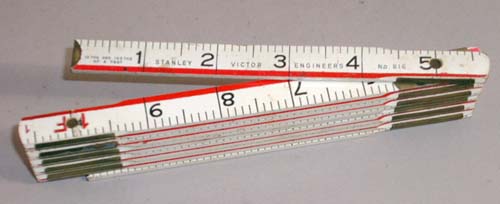

       13. STANLEY 816 VICTOR ENGINEER'S ZIG ZAG RULE, 6 foot, One side is graduated in 16ths, the other is 10ths inches and 100ths foot scales, for architects, draftsmen and contractors working from drawings, G++ ................... $30.00

       14. STANLEY NO.906 ZIG ZAG RULE, This brand-new 6 foot zig zag rule, which was manufactured in the 1930's has English graduations, which means it's graduated left to right. These came from a cache of unused military surplus from WW II, yellow paint, New ................... $45.00

       15. THE LUFKIN RULE CO., 460 CM60CM ZIG ZAG RULE, Metric, 2 meter length, G++ ................... $45.00

       16. THE LUFKIN RULE CO., NO. 1206, Saginaw, Mich. Aluminum 6 foot Zig Zag, G++ ................... $40.00

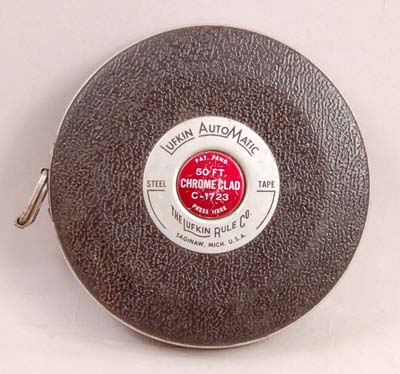

       17. LUFKIN AUTOMATIC, NO. 1723, 50 FOOT STEEL TAPE, Graduated in 1/8ths. It has a push button for spring-loaded return. Leather-grained plastic case, Fine ........... $45.00

       18. LUFKIN NO. C310, 25 FOOT "ANCHOR" STEEL TAPE, Chrome-clad, leather cover. In the original box with instructions, Fine ...........$40.00

       19. LUFKIN IMPROVED METALLIC TAPE. 50 FOOT CLOTH TAPE with steel threads. Leather case, 4 1/4 inches in diameter. Graduated in 1/2 inches, G+ ........... $35.00

       20. LUFKIN EXECUTIVE DIAMETER WHITE CLAD TAPE RULE, 6 foot tape that measures diameter to 64ths of an inch, in the original box, Like new ............ $30.00

       21. STANLEY DEFIANCE NO. 1261 TAPE RULE, 6 foot tape measure, Fine ............ $15.00

       22. LUFKIN WIZARD NO. 686, Saginaw, Mich, 6 foot tape measure, Fine ............ $20.00

       ---
