This is a list of metallic planes for sale. Some of them will have a button to click to see a picture. Instead of having to load each image to continue, just scroll down this list and click to see an image.

This section is divided into STANLEY PLANES, OTHER BRANDS, BLOCK PLANES, SCRAPER PLANES, and COMBINATION PLANES.

Note: I have Ordering Instructions. Just click on Click To Order in any section, or right here.

  Wooden Planes     Back To Tool Index    Back to Home page

Stanley Planes [CLICK TO ORDER]

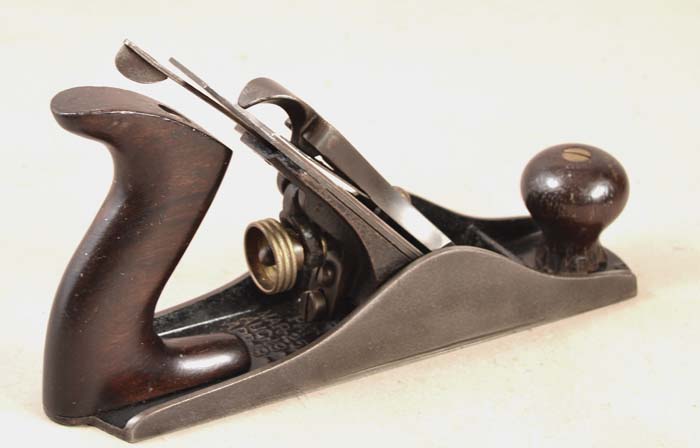

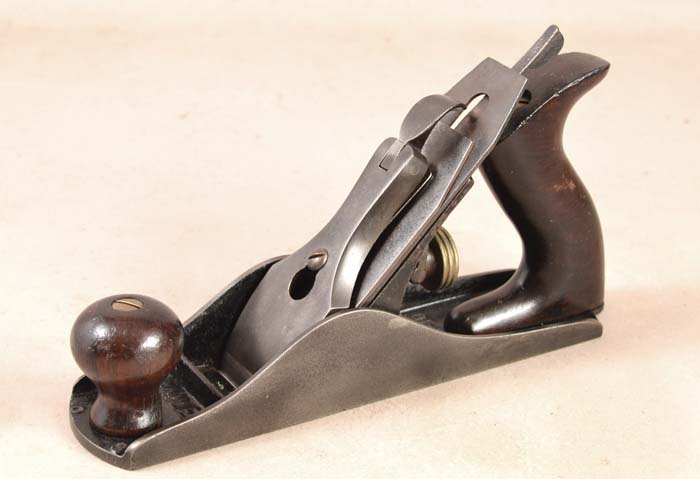

1. STANLEY NO. 3 SMOOTH PLANE,Has the three patent dates cast in the bed. V trademark on the cutter, with 1 1/4 inches of life left. 80% of the japanning remains. Good throat. Some patina and minor roughness on the bare-metal surfaces. The handle and tall knob are crisp with some minor dings and a bit of dirt, G+ .... Sold $110.00
   Picture - Sole

2. STANLEY NO. 3 SMOOTH PLANE, WW II vintage. Notched-rectangle logo on the cutter which is about full-length. The cutter was made in February, 1941. Almost all of the japanning remains. Crisp stained hardwood handle and tall knob are very nice with some scuffs to the finish. Good throat. Has some patina on the bare-metal surfaces, G+ .... Sold $100.00
   Picture - Sole

3. STANLEY NO. 3C SMOOTH PLANE, Notched-rectangle logo on the full-length cutter. 98% japanning and nickel plating on the cap. The rosewood handle and tall knob are very nice with a few tool-box dings. Good throat. Some light patina on the bare-metal surfaces, Fine ........ $130.00
   Picture - Sole

4. STANLEY BEDROCK NO. 603C, SMOOTH PLANE, An early one with the 1895 patent date cast in the bed. (18)92 patent date on the cutter with about 1 -inch of life left. STANLEY R. & L. Co. BEDROCK on the cap. Missing some japanning, but with an overall dark patina, it looks pretty good. Rosewood handle and low knob are very nice except for a few dings. Good throat. Some patina on the bare-metal surfaces. Has been lightly cleaned, G+ ............ Sold $175.00
   Picture - Sole

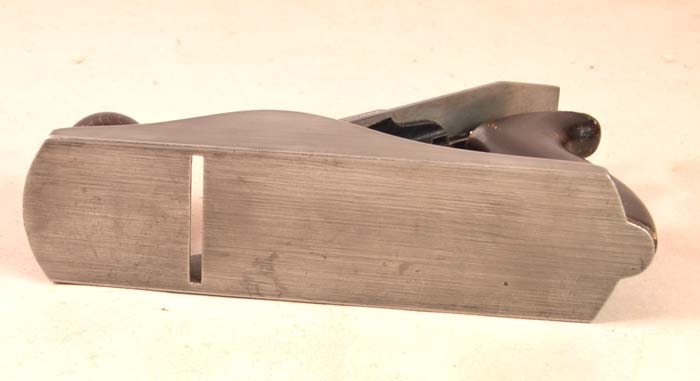

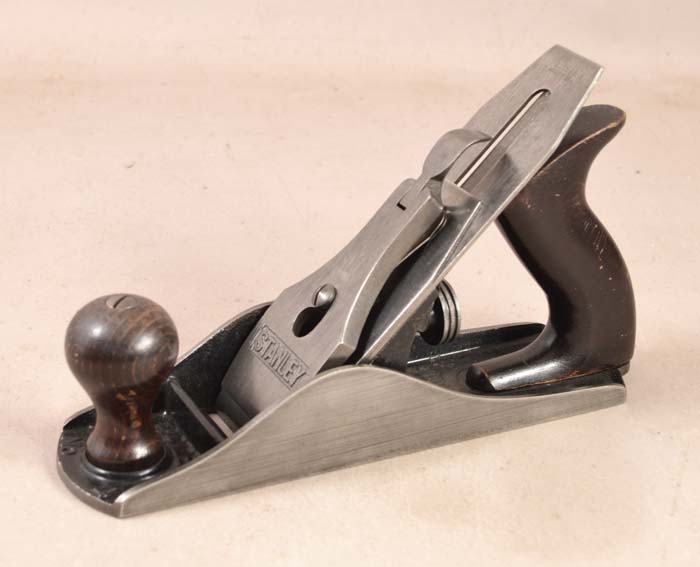

5. STANLEY NO. 4 SMOOTH PLANE, An earlier one with the J trademark (half-circle)on the cutter with good length, and Bailey's Patent Dec. 24, 1867 logo on the chip breaker. 85% japanning remains. Very nice rosewood handle and low knob with a few tool-box dings. Has been lightly cleaned, G+ ..... $110.00
   Picture- Sole

6. STANLEY NO. 4 SMOOTH PLANE, WW II vintage. Notched-rectangle logo on a near-full-length cutter. Almost all of the japanning remains. Stained hardwood handle and tall knob have some light wear to the finish. Good throat and sole sole. A very nice plane, G+ ........ $100.00
   Picture - Sole

7. STANLEY NO. 4 SMOOTH PLANE, Notched-rectangle logo on the cutter with good length. 95% japanning. The rosewood handle and tall knob have some dings and wear to the finish. Some patina on the bare-metal surfaces. Good throat, G+ ........ $90.00
   Picture - Sole

8. STANLEY NO. 4C SMOOTH PLANE, Notched-rectangle logo on the cutter with good length. 90% of the japanning remains, with some dust. Rosewood handle and tall knob are Very crisp. Good throat and sole. Can use a bit of sharpening. A great user, Fine ........ Sold $125.00
   Picture - Sole

9. STANLEY BEDROCK NO. 604, SMOOTH PLANE, '92 Patent Date on the cutter with 1 1/4-inches of meat left. 1895 and 1910 patent dates on the bed. 95% of the japanning remains, with some grunge in the corners. BEDROCK on the cap, which has a 1/32-inch chip, 3/16-inches wide on one edge of the bottom.I don't think that will effect use, but it could be ground down easily. Rosewood handle and tall knob are very nice with some tool-box dings. Some patina and roughness on the bare-metal surfaces. Good throat. A few scratches on the sole. A very nice user, G+ ............ Sold $175.00
   Picture - Sole

10. STANLEY NO. 4 1/2C SMOOTH PLANE, A wide heavy plane used for major smoothing. Corrugated bottom. Sweetheart logo on the cutter with 1 1/2-inches of meat left. Rosewood handle and tall knob are very crisp. 94% japanning. Good throat.Some minor roughness on the sole. Has been lightly cleaned, Fine ......... Sold $165.00

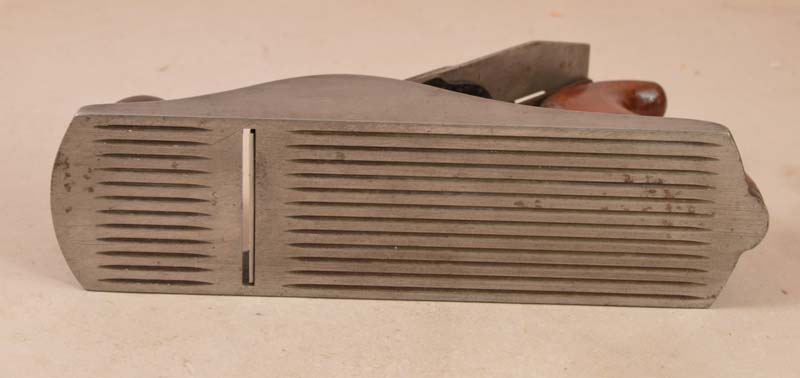

    Picture - Sole

    Note: I have jointer fences in my miscellaneous section They will fit both wooden and metallic planes from jack-size to jointer.

11. STANLEY NO. 5, JACK PLANE, Notched-rectangle logo on the near full-length cutter that has some tiny chips. Almost all of the japanning and nickel plating remain. The rosewood handle and tall knob are crisp but have a few tool-box dings. Good throat. Minor patina on the bare-metal surfaces and minor roughness on the sole. A solid user, G++ ........... $125.00
    Picture - Sole

12. STANLEY NO. 5, JACK PLANE, Notched-rectangle logo on the near full-length cutter. The japanning is kind of worn but looks pretty nice. The ebonized (black) handle has a few abrasions at the top of the tip. The tall knob has some worn finish. Good sole and throat, G+ ........... Sold $100.00
    Picture - Sole

13. STANLEY NO. 5C, JACK PLANE, Type 11, V trademark on the near-full-length cutter. 1902 and 1910 patent dates cast in the bed. Most of japanning remains, with a bit of dirt. The dark rosewood handle and low knob are crisp, with a few minor tool-box dings. Some patina on the bare-metal surfaces. Good throat. A great user, G++ ........... $135.00
    Picture - Sole

14. STANLEY BEDROCK NO. 605, JACK PLANE, Type 7 with square sides from the 1920s. 1910 patent date cast in the bed. Sweetheart logo on the cutter with about 1 1/2-inches of life left. STANLEY on the cap. 96% japanning. Rosewood handle and tall knob are very nice. Some patina on the bare-metal surfaces. A very nice plane. The only apology is a hang-hole in the front. Has been lightly cleaned, Fine ............ Sold $150.00
    Picture - Sole

15. STANLEY BEDROCK NO. 605, JACK PLANE, 1895 and 1910 patent dates cast in the bed. Sweetheart logo on the cutter with 1 1/2-inches of life left. These later ones have STANLEY on the cap. 85% japanning. Rosewood handle and tall knob are not chipped, but have some dings. Some patina and light roughness on the bare-metal surfaces. Some pitting on the back of the sole. A great user, G+ ............ Sold $135.00
    Picture - Sole

16. STANLEY NO. 5 1/4 JUNIOR JACK PLANE, WW II vintage. Notched-rectangle trademark on the near-full-length cutter, which was made in March, 1941. A nice plane. 95% of the japanning remains. Dark Rosewood handle and tall knob are nice, but have a few tool-box dings. Good throat. Some very minor roughness on the sole, Fine .... Sold $125.00
    Picture -Sole

17. STANLEY NO. 5 1/2C, Fore PLANE, Notched-rectangle logo on the full-length cutter. 95% japanning and great nickel plating on the cap. The dark rosewood handle and tall knob are virtually perfect, Fine+ ........... Sold $175.00
    Picture - Sole

18. STANLEY NO. 6C FORE PLANE, Notched=rectangle logo on the near full-length cutter. The cutter was made in March, 1936.Virtually all of the japanning and nickel plating remain. The dark rosewood handle and tall knob are very nice, with a few minor scuffs and dings to the finish. It is in exceptionally nice condition, Fine ......... $175.00
    Picture - Sole

19. STANLEY NO. 6 FORE PLANE, Notched-rectangle on the near full-length cutter. 95% japanning remains. Nice nickel on the cap. The ebonized (black) handle and knob are very crisp, with a few tool-box dings. It is marked imperfect on the cheek. I can't see any obvious reason why it would be. A very nice user, G+ ......... $90.00
    Picture - Sole

20. STANLEY NO. 606C BEDROCK FORE PLANE. Sweetheart logo on the cutter that has 1 1/4-inches of length left.It is marked Made in Can(ada). 1910 patent date cast in the bed. The japanning has been repainted. The rosewood handle has some wear around the top edge. The tall knob has a well-crafted repair to the side of the base. Some patina on the bare-metal surfaces. Good throat, nice sole with minor roughness. A great user, G+ ........ Sold $155.00
    Picture - Sole

21. UNION, JOINTER PLANE 7C, A very good company that was eventually bought out by Stanley. Near full-length cutter. The plane has had little use. 98% japanning. The mahogany? handle and low knob are very crisp with a couple of minor dings. The bare-metal surfaces have picked up some rust from age. It can use a bit of cleaning. Will be a great user. But for the rust,Fine ...... $125.00

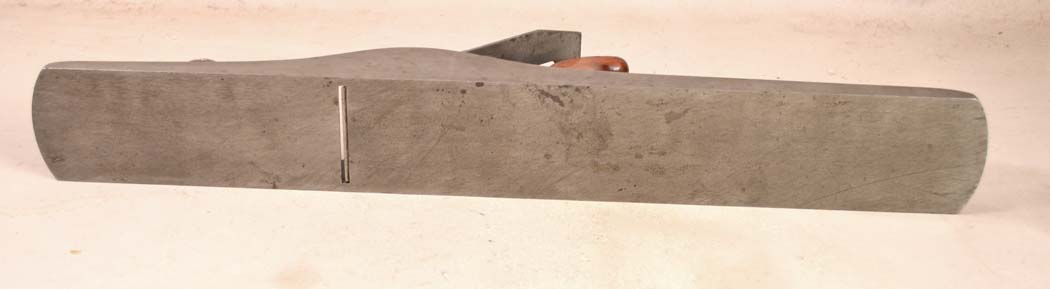

22. STANLEY NO. 7, JOINTER PLANE, Notched-rectangle trademark on the cutter with 1 3/4 inches of life left. 95% japanning and nickel plating on the cap. Ebonized (black)) handle and tall knob are crisp, but have some wear on the edges. Good throat. Minor patina on the bare-metal surfaces, G++ ...... Sold $165.00
    Picture - sole

23. STANLEY NO. 7, JOINTER PLANE, Notched-rectangle logo on the cutter with 1 3/4 inches of meat left. It can use some sharpening. 95% japanning, the nickel cap is a bit dull. Nice rosewood handle and tall knob are very crisp, but have some tool-box dings and chips to the finish. Good throat. Some patina on the bare-metal surfaces, G+ ...... Sold $145.00
    Picture - Sole

24. STANLEY NO. 7C, JOINTER PLANE, Notched-rectangle trademark on the near full-length cutter.The cutter was manufactured in February, 1937. 95% japanning and nickel plating on the cap. The dark rosewood handle and tall knob are very crisp. A very crisp plane with little use. Has some patina on the bare-metal surfaces, Fine ......Sold $190.00
    Picture - Sole

25. STANLEY BEDROCK NO. 607, JOINTER PLANE, Later model with flat sides and the three adjusting screws behind the frog. The (18)95 and (19)10 patent dates are cast in the bed. (18)92 patent date on the cutter, which has been sharpened and has good life left. BEDROCK on the cap. 90% japanning. Nice dark rosewood handle and tall knob have some minor tool-box dings. Some light roughness on the sole. A very good user, G++ ............ Sold $265.00
    Picture - sole

26. STANLEY NO. 8 JOINTER PLANE, Sweetheart logo on the cutter that is full-length. 1902 and 1910 patent dates cast in the bed. 90% japanning. Rosewood handle and tall knob are crisp with minor dings. Some patina on the bare-metal surfaces. Good throat, G++ ...... Sold $175.00

27. STANLEY NO. 8 JOINTER PLANE,From the late 1930s. Notched-rectangle logo on the Full-length cutter that was made in January, 1937. It has virtually all of the japanning and nickel plating. The dark rosewood handle and tall knob are very crisp. The plane has had little use and is in very crisp condition. There is some stain from age and some roughness on the sole, Fine ...... Sold $250.00
    Picture - Side
    Picture - Side
    Picture - Sole

28. STANLEY NO. 8 JOINTER PLANE, Notched-rectangle logo on the cutter that is full-length. Rosewood handle and tall knob are crisp with a few dings and minor crazing to the finish. 96% japanning. Some light patina on the bare-metal surfaces. Minor roughness on the sole, G++ ...... Sold $175.00

29. STANLEY NO. 8C JOINTER PLANE, Notched-rectangle logo on the cutter, which is full-length. The cutter was made in January, 1936. The japanning may have been repainted. Nice rosewood knob, The handle is crisp, but has a small chip on the middle side at the top. Good throat. Some rust on the cap and the body - mostly on the right side, can use a bit of cleaning. Otherwise, it's crisp and is a very good user, G+ ...... $145.00
    Picture - Sole

30. STANLEY BEDROCK NO. 608, JOINTER PLANE, Later model with flat sides and the three adjusting screws behind the frog, along with the (18)95 and (19)10 patent dates. This one has been set up for a user with a HOCK blade. The cap is a Stanley of the correct vintage, and they weren't marked at that time. The dark rosewood handle and tall knob are quite nice. The plane is clean with good japanning that look like it was enhanced. Some light patina on the bare-metal surfaces. Some minor roughness on the sole. A very nice user, G+ ............ Sold $275.00
    Picture - sole

    STANLEY NO. 9 1/2 BLOCK PLANE, Block Planes are listed further down, past Other Planes

31. STANLEY NO. 10, CARRIAGE MAKER'S RABBET PLANE, Very close to perfect condition. Notched-rectangle logo on the cutter, which is near full-length, and was made in Feburary,1937. 99% japanning. Very crisp dark rosewood handle and tall knob. There is some light patina on the bare metal surfaces. It is in original condition, so I am leaving it the way it is, the top of the cutter may have been lightly cleaned. Needs some sharpening, Fine+ .......... Sold $225.00

32. STANLEY NO. 10, CARRIAGE MAKER'S RABBET PLANE, Notched-rectangle logo on the full-length cutter, made in February, 1940. 98% japanning. Very crisp dark rosewood handle and tall knob. Good throat, Fine .......... Sold $185.00
    Picture - Sole

33. STANLEY NO. 10 1/4, CARRIAGE MAKER'S RABBET PLANE, This one is the jack plane size, with tilting handles and spurs. 1901 patent date cast in the bed. Sweetheart logo on the near full-length cutter. 80% japanning. Good throat. There is some minor roughness on the bare-metal surfaces. Has been lightly cleaned. A great user, G+ .......... Sold $325.00
    Picture - Bottom

34. STANLEY NO. 10 1/2, CARRIAGE MAKER'S RABBET PLANE, This one is the smooth plane size. '92 patent date on the near full-length cutter which could use a bit of lapping. B casting mark in the bed dates this to around 1900. 90% japanning. Dark rosewood handle and low knob are very nice with a few minor dings. Good throat. Some patina on the bare-metal surfaces, G++ .......... Sold $195.00
    Picture - Bottom

35. STANLEY NO. 13, CIRCULAR PLANE, Early Bailey's patent (1872-85), with the small half-circle J trademark on the cutter with about an inch of meat left. Solid adjuster nut. 60% japanning. Some stain and a couple of small spots of pitting on the sole that won't effect use, G ............... Sold $85.00

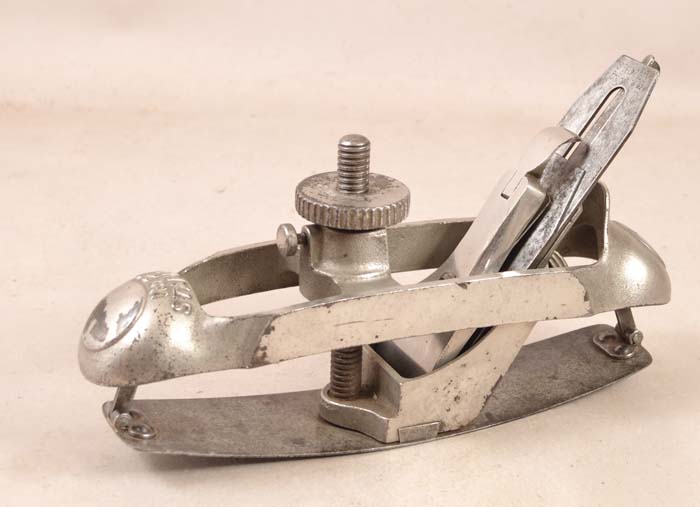

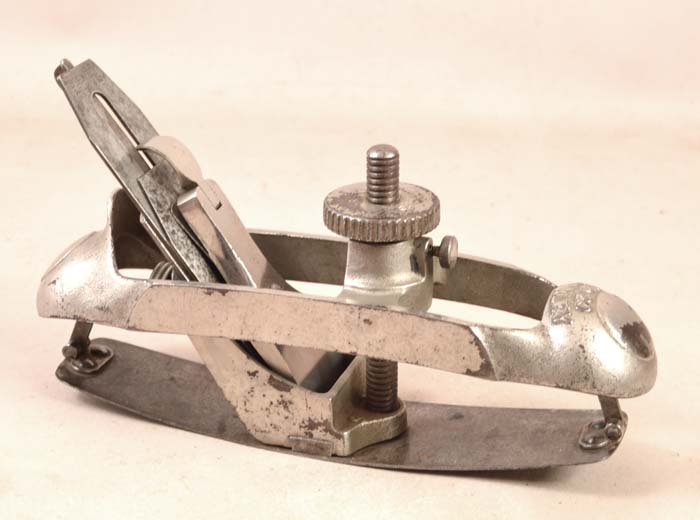

36. STANLEY NO. 20, CIRCULAR PLANE, This is the heavier circular plane produced by Stanley. WW II vintage with the notched-rectangle logo on the full-length cutter which was made in January, 1938. This one is really nice with almost all of the japanning, which looks like it may have been touched-up. The sole is shiny-nice, Fine ............... $235.00
    Picture - Sole

37. STANLEY NO.39- 3/8 INCH, DADO PLANE, Sweetheart logo on the cap screw. Complete with good length to the cutter and spurs. 95% of the japanning remains. Very crisp plane has been lightly cleaned. Minor patina on the bare-metal surfaces, G++ ............ Sold $145.00
    Picture - Bottom

38. STANLEY NO. 40, SCRUB PLANE, Used to quickly reduce the thickness of a board to the required size. Earlier one with Stanley Rule & Level Co. logo on the cutter with good length. 90% japanning. Beech handle and the tall knob are nice with some wear to the finish, G+ ........ Sold $160.00
    Picture - Sole

39. STANLEY NO. 40 1/2, SCRUB PLANE, This is the wider one - has a 1 1/4 inch cutter, built for some serious scrub work. Sweetheart logo on the full-length cutter. ca. 1930s. 90% japanning with some wear on the sides. Beech handle and tall knob have some minor roughness from use, G++ ........ Sold $135.00

40. STANLEY NO. 48, TONGUE & GROOVE PLANE, Used to make a 5/16 inch tongue and groove joint on 3/4 inch to 1 1/4 inch boards (with the extra cutter for the wider boards), centering on 7/8 inch stock. Sweetheart mark on one of the cap screws. 95% of the nickel plating remains, Fine ........ Sold $160.00

41. STANLEY NO. 49, TONGUE & GROOVE PLANE, Smaller sixe. Used to make a 3/16 inch tongue and groove joint on 1/2 inch to 3/4 inch boards, centering on 1/2 inch stock. Fish scale pattern on the handle dates it after 1911. almost all of the nickle plating remains of the nickel plating remains, Fine ........ Sold $155.00

42. STANLEY NO. 57, CORE BOX PLANE, Sweetheart logo on the cutter, Complete with all parts including the spreader bar with turnbuckle. Almost all of the nickle plating remains with some minor dirt and patina, and a few superficial scratches on the sole, Fine ........ Sold $250.00
    Picture - Bottom

43. In the Box SARGENT NO. 62, IRON ROUTER PLANE. Open throat. Complete with the throat-closing attachment and both cutters, which have several notches to fit only the Sargent with the helical adjustment screw. I haven't seen another with both cutters. Almost all of the nickel plating remains. The lacquer is worn on one knob. The box is rough, Fine ........ $225.00

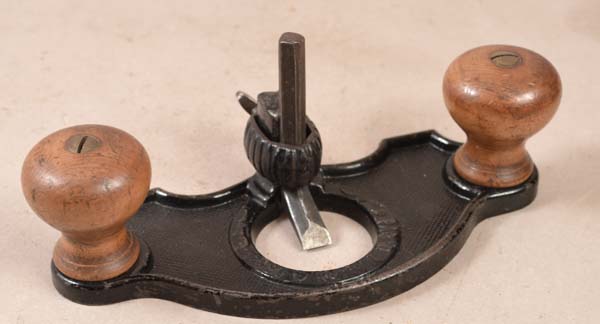

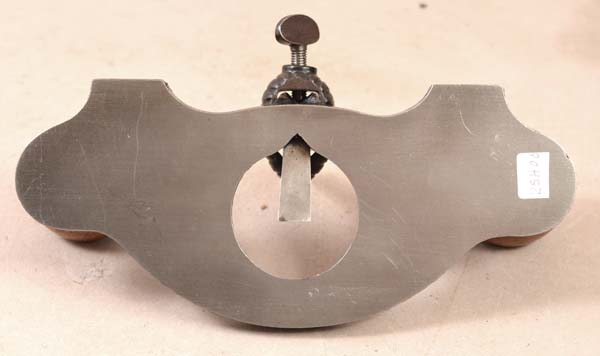

44. STANLEY NO. 71, OPEN-THROAT ROUTER, A very nice early plane complete with all three cutters. 95% of the nickel plating remains - a bit worn on the sole. Maple knobs have minor tool-box scratches and dings, G++ ........ Sold $155.00
    Picture - Sole

45. STANLEY NO. 71, OPEN-THROAT ROUTER, An early one with the 1884 patent date cast in the bed. The B casting mark dates it to before 1900. Complete with the 1/4 and 1/2 inch cutters. It is completely functional with some dirt and wear to the nickel plating.. The maple knobs have some dings, G+ ........ Sold $135.00
    Picture - sole

46. SARGENT NO. 61 ROUTER PLANE. Closed-throat. A rare router with a spiral adjusting nut. Even rarer to have the correct cutter with several notches. Most of the nickel plating, G++ ........ Sold $100.00
    Picture - Sole

47. STANLEY NO. 71 1/2, CLOSED THROAT ROUTER, an early one with the 10-29-(19)01 patent date cast in the bed. The handles are maple and are very nice. Complete with with the 1/2- and 1/4-inch cutters. Almost all of the nickel plating remains, Fine ........ Sold $135.00
    Picture - Sole

48. STANLEY NO. 71, 71 1/2 ROUTER, POINTY CUTTER ONLY, has minor patina and could use a bit of sharpening, Fine ......... $25.00

49. STANLEY NO. 71, 71 1/2 ROUTER, WIDE CUTTER ONLY, Earlier one that has the notch, but will fit the later planes. Has minor patina and could use a bit of sharpening, Fine ......... $25.00

50. STANLEY NO. 72, CHAMFER PLANE, STANLEY and No. 72 cast in the body. Stanley Rule & Level Co. logo and the 1885 patent date on the cutter. In extremely nice condition. 98% japanning. The rosewood handle and knob are nearly perfect. There is some light patina on the bare-metal surfaces, Fine ........ Sold $375.00
    Picture - Bottom

51. STANLEY NO. 72 1/2, CHAMFER PLANE WITH BULLNOSE and BEADING ATTACHMENT, J trademark on the cutter with good length left. 95% japanning - some is missing on the bullnose. Crisp dark rosewood handle and knob have a couple of tool-box dings. Has been lightly cleaned and has a few spots of stain from age. Six original cutters for the beading attachment, Fine ........ Sold $975.00

52. STANLEY NO. 78 DUPLEX RABBIT & FILLETSTER PLANE, B casting mark dates this one to around 1900. Half-circle S. R.& L. Co. logo on the cutter with good length. Early model with the ivy design on the handle. Most of the black japanning remains. Complete with fence, depth stop and spur. Some minor patina on the bare-metal surfaces, G++ ........ $100.00
    Picture -Sole

53. SARGENT NO. 79, RABBET & FILLETSTER PLANE. (Basically the same as the Stanley No. 78). Complete with fence, depth stop and spur. It has had little use but there are some small chips to the japanning. The box is rough, Fine ........ $115.00

54. In the Box STANLEY NO. 79 SIDE RABBIT PLANE, Made in USA. Cuts right- and left-hand rabbets. A later model with the fence, which is very handy. 99% of the nickel plating remaining. The box is very nice, Fine ........ Sold $100.00

55. STANLEY NO. 82, 1 INCH RABBET PLANE, Stanley, New Britain, Conn, USA logo on the cutter ca 1910?). 85% of the japanning remains with some dust. Complete with depth stop, G+ .................. Sold $35.00
    Picture - Bottom

56. STANLEY NO. 90, BULL NOSE RABBET PLANE, Made in USA. Sweetheart logo on the cutter. These are much better and finished a lot nicer than the later ones that were coming out of England. The top comes off so it can be used as a chisel plane, too. 98% nickel plating. A bit of patina and and an owner's initial punched in the side (shown in the picture), Fine ........ Sold $110.00

57. STANLEY NO. 92, CABINET MAKER'S RABBET PLANE, Made in USA. 97% nickel plating. 5 1/2 X 3/4 inch sole. The cutter was a bit short, so, I added a NOS Notched-rectangle cutter of the same vintage. The top part comes off, so it can be used as a chisel plane, Fine ........Sold $190.00

58. STANLEY PAIR OF NO. 98, RIGHT-HANDED; and NO. 99, LEFT-HANDED, SIDE-RABBET PLANES, A pair of later models with the depth stop on the back. The full-length cutter is Marked Sweetheart on the 98 and Made in USA on the 99. They both have about 95% nickel plating. There is a bit of flaking on the backs, Fine ........ Sold $215.00

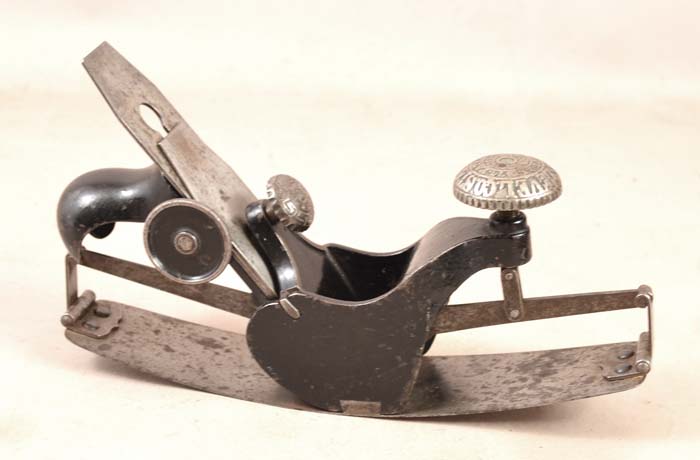

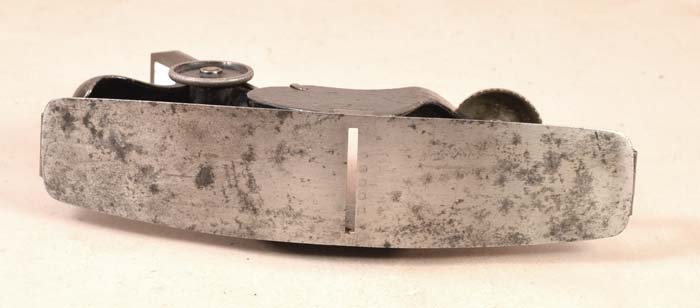

59. STANLEY NO. 113, CIRCULAR PLANE, Type II, I believe. 1876 patent date on the cutter. Side-wheel cutter adjuster. 80% japanning remains. There is some minor patina on the bare-metal surfaces. A good user, G+ ........ $150.00
    Picture - Sole

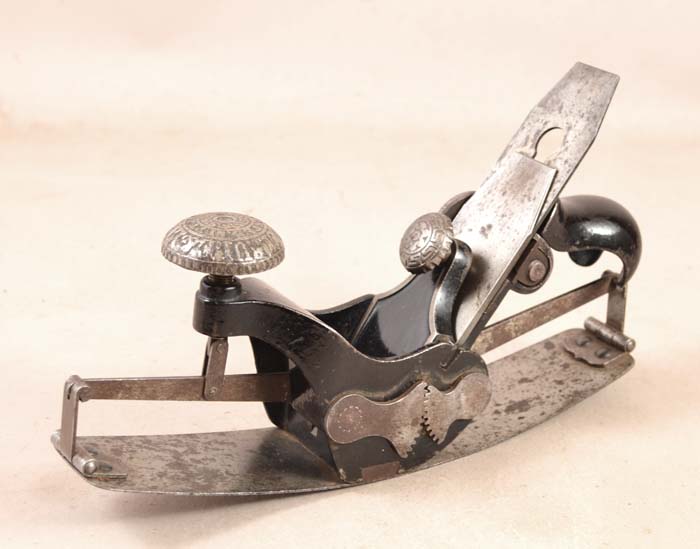

60. STANLEY NO. 113, CIRCULAR PLANE, Later style with lateral adjuster and lever cap. (18)92 patent date trademark on the cutter. 80% of the japanning remains. Some patina on the bare-metal surfaces. The sole is nice. A very good user, G++ ........ Sold $140.00
    Picture - Bottom

61. STANLEY NO. 144, CORNER ROUNDING PLANE, 3/8-inch size. PAT APL'D FOR cast in the frame. 90% of the japanning remains. Some patina and light wear on the bare-metal surfaces, G++ ........ Sold $175.00
    Picture - Other Side

62. STANLEY NO. 147, MATCH PLANE, It still has 95% of the japanning, which dates it to WW II. The middle size, for planing a tongue and groove on boards 1/2 to 3/4 inches thick. A plane in near-new condition with some minor patina on the bare-metal surfaces, Fine+ .................. Sold $135.00

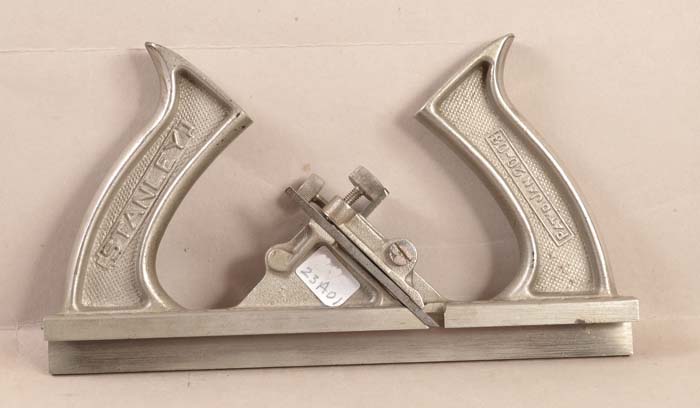

63. Boxed STANLEY NO. 148, MATCH PLANE, Made in USA logo cast in the body. For planing a tongue and groove on boards 3/4 to 1 inch thick. A plane in basically new condition with 99% of the nickel plating. The box is nice with some minor stain and some separation on a back edge, Fine+ .................. Sold $165.00

64. STANLEY NO. 148, MATCH PLANE, Notched-rectangle logo on the cutter and body. For planing a tongue and groove on boards 3/4 to 1 inch thick - centers on 7/8 inch. A plane in near-new condition with 98% nickel plating. Very nice plane, Fine .......... Sold $125.00

65. STANLEY NO. 191, 1 1/4 INCH RABBET PLANE, Earlier one with the J trademark on the cutter. 90% of the japanning remains. Complete with depth stop and spur. Has been lightly cleaned, G+ .................. $50.00

66. Boxed STANLEY NO. 271 ROUTER, Made in USA. 99% nickel plating. 3 inches long, and handy for small work. Can be set for closed or open throat work. In the original box which is nice, Fine .............. $95.00

67. STANLEY NO. 271 ROUTER, Made in USA. 95% nickel plating, which is a bit dull. 3 inches long, and handy for small work. Can be set for closed or open throat work, Fine .............. Sold $60.00

68. Boxed STANLEY NO. 271 ROUTER, Made in England. This small router is 3 inches long, and handy for small work. 1/4 inch cutter. Can be set for closed or open throat work. 99% of the nickel plating remains. Original instructions, Fine+ .................. Sold $60.00

1. Fales Patent Combination Plane. Marked Otis Smith, Rockfall, Conn. and Pat Mar. 7, (18)82, & Apr. 1, (18)84 on the skate. Smith was the manufacturer.
   Aside from its styling, the main feature of the plane was soles that fit on the skate for each cutting profile. The Rosewood handle and knob and beech fence are in very nice condition. There is some light rust on the plane, G+ .......... Sold $225.00
   Picture - Top

2. UNION NO. 44 COMBINATION PLANE. Made by Siegley and sold by Union. Complete in the original box. It has the long and short rods, all three depth stops, and flat green box that holds all 18 cutters. The cutters are very nice with minor dirt and cosmoline.
   The box has some damage. The box label and the instructions have some silverfish damage, Fine+ .......... Sold $395.00
   Picture - Box

3. FOX MFG. CO. SCRAPER. This very graphic wood-body scraper is from Milwaukee, Wis. It still has most of the colorful decal on the side.
   Fox is stamped on the 3 1/2 inch wide cutter and imbossed on the cap. Overall length is 11 inches. Still very crisp, G++ .......... $295.00

4. SIEGLEY PATENT PLOW PLANE. TYPE 1. Although Siegley Patent Plow Planes are rather common, this is one of the very few that have an all-metal fence with a micro-dial adjustment. Since Stanley bought out the Siegley company, it is easy to speculate that this is where the idea for the micro-dial fence on the Stanley 45 and 55 came from. Note that on a Siegley, the sliding section and fence go on different sides.
   Marked J. Siegley Pat. Aug. 19, 90 on the side of the body. It has a Stanley cutter and could use a bit of cleaning, G+ .......... $375.00
   Picture - Other Side

5. CHAPLIN'S PATENT SMOOTH PLANE.Tower & Lyon Co., Chaplin's Improved smooth plane is 8 1/2 inches long, including the handle overhang. Earlier style with the scalloped edges on the sides of the body. The cutter seems to be unmarked. Checkered hard rubber handle is very crisp and ebonized knob. Most of the japanning remains. There is patina on the bare-metal surfaces which seem to have been lacquered, G+ .......... Sold $265.00
   Picture - Sole

6. BRONZE RABBET PLANE. This mahogany-stuffed bronze rabbet plane is 5 1/4 inches long, and about 3/8 inches wide. This one was probably craftsman-made, and has very graceful styling with a long, delicate screw cap. Probably British from the late 1800s, Fine ........ $375.00
   Picture - Sole

7. STANLEY RABBET ROUTER PLANE.This is a rare Stanley-made experimental plane designed for some special purpose. A deep center skate was built to cut a fixed-width groove. Rosewood handles. The metal has a rough surface, which is typical for these planes. There are remnants of the casting number that identifies this as from Stanley, G+ ..................... Sold $295.00

8. BIRMINGHAM CARRIAGE-MAKERS T-RABBET PLANE. This is one of my favorites. Streamlined styling with a bat-wing design behind the cutter. This eight-inch, no. 3 size is an example of a rare plane.
   The company was in business from 1885 until 1900.
   This is the non-adjustable model. 95% japanning remains, G++ .......... Sold $450.00

9. WESTON'S SIDE-HANDLE BELT PLANE. This one is unmarked, but the patent date was June 1, 1858.
   Early industry was run by water- and steam-power. Factories had a series of shafts and pulleys connected to the power source, running along the ceiling. Wide leather belting was used to transfer the motion from the ceiling to the machines on the floor. These planes were used to cut a wide bevel joint on each side of the belt so they could be sewn together and lie flat.This plane is in nice condition. The cutter looks like it may be a replacement, G+ .......... $165.00

10. BRONZE CHARIOT PLANE, Decorative little bronze plane is 4 incheas long and 1 3/4 inches wide. The steel sole has some pitting, G+ .......... Sold $150.00
    Picture - Sole

11. SMALL CORE BOX PLANE Owner-made. Very cute with a 8 5/8 inch iron body. The graceful handle has a crack and a small chip at the top. Very well-made, G++ ............... $75.00
    Picture - Other Side

12. WOODEN ROUTER. Quite decorative, probably. 11 1/2 inches wide, G++ ............... $55.00

13. MASSIVE RAM'S-HORN SCRAPER. Very impressive. Wood body with brass sole and a brass end to hold the cutter. 10 1/2 inches wide, G++ ............... $80.00

1. STANLEY NO. 9 1/4, BLOCK PLANE, Adjustable cutter. 6 inches long. Stanley notched-rectangle mark on the long cutter. 95% japanning. Good throat. Some minor roughness on the sole, G+ ........... $45.00
   Picture - Sole

2. Boxed STANLEY NO. 9 1/4, BLOCK PLANE, 6 inches long. Adjustable cutter. Stanley notched-rectangle mark on the cutter with near-new length. 96% japanning with a bit of dust. Has had light use. Minor patina from age, Fine ........... Sold $65.00
   Picture - Sole

3. Boxed STANLEY NO. 9 1/2, BLOCK PLANE, Adjustable throat. Adjustable cutter. Stanley notched-rectangle mark on the full-length cutter. Basically unused. 99% japanning. Very crisp and like new with a few spots of stain from storage. The box is very nice. It looks a bit strange because it was made by folding the sides, not taping, Fine .......... Sold $125.00

4. STANLEY NO. 9 1/2, BLOCK PLANE, Adjustable throat. Adjustable cutter. Sweetheart logo on the cutter with full length. 85% Japanning is worn on the back of the cap. Great throat and minor scratching on the sole, G+ .......... $70.00
   Picture - Sole

5. STANLEY NO. 9 1/2, BLOCK PLANE, Adjustable throat. Adjustable cutter. Early excelsior style with delicate design and fine finish. J trademark (half-circle - from around 1900) on the cutter with good length. Around 90% japanning. Some patina on the bare-metal surfaces. A few spots of minor roughness on the sole. It's actually quite crisp and could use a bit of cleaning, G++ .......... $90.00
   Picture - Sole

6. STANLEY NO. 9 1/2, BLOCK PLANE, Adjustable throat. Adjustable cutter. Notched-rectangle logo on the cutter with good length. Some minor stain and patina on the bare-metal surfaces. Japanning is 85%, missing mostly on the cowl of the cap. There is some minor roughness on the sole, but a good throat, G+ .......... Sold $60.00
   Picture - Sole

7. CRAFTSMAN NO. 107-37032 BLOCK PLANE, Adjustable throat. Adjustable cutter. It's just like a Stanley no. 16, which is their 9 1/2 with nickel-plated trimmings. Good throat. Some light rust could use a wipe, Fine.......... $50.00
   Picture - Sole

8. MILLERS FALLS NO. 16 BLOCK PLANE, 6 inches long. About exactly the same as the Stanley No. 9 1/2. Adjustable throat and cutter. Has had little use. 99% japanning, Fine .......... $50.00
   Picture - Sole

9. STANLEY NO. 15, 7 INCH BLOCK PLANE, with adjustable throat. Same as the No. 9 1/2, but about an inch longer. An early one from the late 1800s, with all of the early styling. S R & L half-circle trademark on the cutter. (18)94 patent date on the throat adjustment cam. The cap lever is underneath at the bottom. 70% japanning with patina on the bare-metal surfaces, G ........... Sold $80.00
   Picture - Sole

10. STANLEY NO. 18, BLOCK PLANE, with adjustable throat. Same as the no. 9 1/2 except for the knuckle-joint cap, which is preferred by many for its comfort during use, and nickel plated trimmings. V logo (around 1910) on the cutter with good length, and Stanley and patent date on the cap. 90% of the japanning,with some paint splatters, and nice nickel plating on the cap. Good throat. Some patina on the bare-metal surfaces. Minor scratches on the sole,G++ ............ $75.00
    Picture - Bottom

11. STANLEY NO. S18, BLOCK PLANE, with adjustable throat. This is a very nice plane. Has a steel body that doesn't break like cast iron and a knuckle-joint cap, which is preferred by many for its comfort during use, and nickel plated trimmings. Has the Sweetheart logo on the full-length cutter, and on the cap. Almost all of the japanning, and nice nickel plating remains. Good throat, Fine ............ $125.00
    Picture - Bottom

12. STANLEY NO. 18 1/4, BLOCK PLANE, Made only for a short time. Same as the no. 9 1/4 except for the knuckle-joint cap (which is preferred by many for its more comfortable grip), and nickel plated trimmings. Notched rectangle logo on the cutter with good length, and STANLEY on the cap. Missing some japanning and wear on the nickle plating on the cap. Minor roughness on the sole, G ............ $75.00
    Picture - Sole

13. STANLEY NO. 19, BLOCK PLANE, 7 inch length, with adjustable throat. Nickle-plated knuckle-joint cap and trimmings. J trademark (half circle)) on the cutter. From around 1900. 90% of the japanning remains, pretty nice nickel plating, G++ ............ $85.00
    Picture - Sole

14. STANLEY NO. 60, LOW ANGLE BLOCK PLANE, with adjustable throat. Notched-rectangle logo on the cutter with good length. It's a No. 60 because of the nickel-plated trimmings. This is the smaller, 6 inch block plane. The japanning is about 98%. The nickel plating is very nice with some wear on the top of the knob. Good throat. Very minor roughness on the sole. This is an excellent plane to use, G++ ............ Sold $120.00
    Picture - Bottom

15. Boxed STANLEY NO. 60 1/2, LOW ANGLE BLOCK PLANE, with adjustable throat. The plane has had little. Made in USA logo on the full-length cutter. This is the smaller, 6 inch block plane. I find this plane to be very useful because of its small size and low angle. No chips or cracks in the throat. It has 99% of its japanning. Some very minor tarnish from age. In the original box, which has some minor wear, Fine ............ Sold $125.00
    Picture - Bottom

16. STANLEY NO. 60 1/2, LOW ANGLE BLOCK PLANE, with adjustable throat and adjustable cutter. Notched-rectangle logo on the cutter with good length. This is the smaller, 6 inch block plane. 75% blue enamel. Good throat. A few dings and some minor roughness on the sole, G+............ Sold $55.00
    Picture - Sole

17. Boxed MILLERS FALLS NO. 1455 LOW ANGLE BLOCK PLANE, Like The Stanley 60 without an adjustable throat. This is the smaller, 6 inch block plane. I find this plane to be very useful because of its small size and low angle. Almost all of the paint remains. Good throat, Fine ............ $50.00
    Picture - Sole

18. CRAFTSMAN 3732 (No. 65) LOW ANGLE BLOCK PLANE. This one is the Sargent equivalent of the STANLEY NO. 65, and sold by Craftsman. 98% grey enamel, most of the nickel plating. A good user, G+ ............ Sold $45.00

19. STANLEY NO. 75, BULL NOSE RABBET PLANE, Notched-rectangle logo on the cutter. Adjustable throat. 97% japanning. The box is rough, Fine ............ Sold $30.00

20. STANLEY NO. 75, BULL NOSE RABBET PLANE, Notched-rectangle logo on the cutter. Adjustable throat. 90% japanning. A great little user, G++ ............ Sold $25.00

21. STANLEY NO. 95, EDGE TRIMMING BLOCK PLANE, The sole has a fence at 90 degrees to plane the edges of boards square to the face. Notched rectangle logo on cutter, 98% japanning remails with decal, Fine ........ $195.00
    Picture - Sole

22. BoxedSTANLEY NO. 100, TAILED HANDLE BLOCK PLANE, The bottom is flat. Notched rectangle mark on the cutter. 99% of the red and black enamel remains. Has had little use. The box has some minor wear, Fine ........... Sold $85.00

23. STANLEY NO. 100 1/2, TAILED HANDLE BLOCK PLANE, 3 1/2 inch sole. Notched rectangle logo on the cutter. The bottom is curved in both directions. Used by model and patternmakers and musical instrument and furniture makers for cleaning out surfaces having a curved radius. Also good for hogging out areas for clearance. Has had little use. 97% japanning and red paint on the cap. Some light patina on the bare-metal surfaces. Owner's name and address in script on the right cheek (shown), Fine ........... Sold $110.00

24. STANLEY NO. 101, BLOCK PLANE, Notched-rectangle logo on the cutter. 99% of the black japanning remains, Fine ........... Sold $30.00

25. STANLEY NO. 102, BLOCK PLANE, Five and one-half inches long. Sweetheart logo on the cutter with good length. 95% of the japanning remains. A very nice little plane. The box has some edge wear, Fine ........... $35.00
    Picture - Sole

26. FULTON NO. 102, BLOCK PLANE, Looks like it was made by Sargent. 95% of the japanning remains. Could use a bit of cleaning, G++ ........... $30.00

27. STANLEY NO. 103, BLOCK PLANE, Same as the No. 102, except there is a cutter adjuster. Early type with the large arched J trademark and the April 18, 1876 patent date on the cutter. 70% of the japanning remains, G+ ........... Sold $50.00
    Picture - Bottom

28. STANLEY NO. 110, BLOCK PLANE, Stanley notched rectangle logo on the cutter. 99% japanning and nickel plating, Fine ........... Sold $20.00

29. STANLEY NO. 118, BLOCK PLANE, A low-angle block plane. Has a steel body that doesn't break like cast iron. These were originally designed for shop class, but they are very handy for use. Notched-rectangle logo on the cutter with very good length. It has almost all of the black enamel on the body. Some patina on the bare-metal surfaces, Fine ........... $60.00
    Picture - Sole

30. STANLEY NO. 120, BLOCK PLANE, An early one with a six-pointed star on the cap.The logo on the cuter is somewhat illegible, but is the half-circle that has the April 18, 1876 patent date on it. Missing japanning and has some light rust, G ........... $95.00
    Picture - Sole

31. STANLEY NO. 130, DOUBLE-END BLOCK PLANE, Sweetheart logo on the cutter. One end is a bullnose. 95% japanning - it's a little dull on the cap. Partial decal. Has been lightly cleaned, G+++ ........... $70.00

32. STANLEY NO. 140, SIDE-RABBET BLOCK PLANE, A block plane with a removable side plate for rabbet work at the edge. A really nice plane with the curved early Stanley Rule & Level Co. logo on the cutter with good length, from around 1900. 90% japanning. Almost all of the nickel plating is still on the cap. Minor roughness on the sole. Has been lightly cleaned, G++ ........... Sold $135.00
    Picture - Sole

33. STANLEY NO. 203, BLOCK PLANE. Notched-rectangle logo on the full-length cutter. 98% of the japanning remains. Crisp rosewood knob. 5 1/2 inches long. This is a perfect plane for small, general purpose work, or for kids to use. There is are some spots of very light stain on the top of the cutter, but this is very nice, Fine+ ........... Sold $120.00

1. STANLEY NO. 12, VENEER SCRAPER, Used for scraping fine hardwoods, veneer, and fancy grained woods. Has had little use. 95% japanning. Rosewood handle is very nice. The cutter has the STANLEY logo, and is very crisp and full-length, Fine .............. Sold $110.00
   Picture - Sole

2. STANLEY NO. 80, CABINET SCRAPER, Sweetheart logo on the crossbar and cutter with good length. 85% of the japanning remains. Minor patina on the bare-metal surfaces. Some minor roughness on the sole, G+ ........ $70.00
   Picture - Sole

3. STANLEY NO. 80M, CABINET SCRAPER, The M stands for malleable iron, which makes this one much less breakable than the cast iron model. Notched-rectangle logo on the crossbar and the cutter. 95% of the blue japanning remains. Some minor patina on the bare-metal surfaces, G+ ........ Sold $80.00
   Picture Sole

4. SARGENT NO. 54 CABINET SCRAPER, (Same design as the early Stanley No. 80 by a competitor) The cutter with good length is unmarked and could use a bit of sharpening. 80% japanning. Some light patina, G+ ........ $55.00
   Picture - Sole

5. STANLEY NO. 81, CABINET SCRAPER, Has most of the nickel plating, with some dirt and light rust. Good depth on the rosewood sole. The cutter has a Sweetheart mark, but looks like it was cut down from a No. 12 scraper. A good user, G+ ........ $80.00

6. Boxed STANLEY NO. 82, CABINET SCRAPER, This one has the flat cutter. It has had little use, but it looks like someone scraped a tag off of the handle. The earlier box is kind of rough, G+ ........ $45.00

7. STANLEY NO. 112, CABINET SCRAPER PLANE, Sweetheart logo on the cap screw and STANLEY block-letter logo on the cutter. 95% japanning. Very nice rosewood handle and front knob with a few minor tool-box dings, Fine .............. $235.00
   Picture - Sole

8. E. C. ATKINS RAMS HORN SCRAPER, Maple? body. The cutter fits, but is unmarked, G+ .............. $55.00

9. STARRETT SCRAPER HANDLE, Holds hand-scraper blades for cabinet scraping, floor scraping, etc. Universal-joint blade adjustment, G++ ............. $30.00

(Note: For information about combination planes, see My Features Section)

(Another Note: Sharpen the cutters on the flat side and maybe hone the bevel. that way the profile doesn't get deformed.

1. In The Box STANLEY NO. 45 COMBINATION PLANE, Sweetheart logo on the skate. 7 Planes in one ... Complete with the long and short rods, 4 depth stops, cam, screwdriver and the Sweetheart original cutter box and cover with 22 cutters and the slitter. The cutters have had a little use and are shiny-nice with a few rust spots from storage. Almost all of the original nickel-plating remains on the plane. Crisp rosewood handle, knob and fence. In the very nice original orange steel box, with hinged lid. This is the only one that will display the plane assembled with the short rods. With the original instructions, Fine ......... $525.00
   Picture - Plane Inside the Box
   Picture - Plane
   Picture - cutters
   Picture - Boxes

2. STANLEY NO. 45 COMBINATION PLANE. A very nice plane. Notched-rectangle logo on the skate. This one is complete with the long and short rods, all 4 depth stops, cam, and a box with all 23 original cutters. The cutters are in very nice condition, but could probably use a bit of touch-up sharpening for use.
   99% of the original nickel-plating remains. Very crisp rosewood handle, fence, and knob, with very minor tool-box dings. I will include a copy of the instructions, Fine+......... Sold $295.00
   Picture - plane
   Picture - cutters

3. FOUR 1/8 inch REEDING CUTTERS for the Stanley Nos. 45 and 55 planes. Made by Record, but are the same as Stanley. Two, three, four and five 1/8 inch reeds. All are special cutters for the No. 45, three are special cutters for the No. 55, Fine ......... $90.00

4. FOUR 1/4 inch REEDING CUTTERS for the Stanley Nos. 45 and 55 planes. Made by Record, but are the same as Stanley. Two, three, four and five 1/4 inch reeds. All are special cutters for the No. 45, three are special cutters for the No. 55, Fine ......... $100.00

5. SIX FLUTING CUTTERS for the Stanley Nos. 45 and 55 planes. Made by Record, but are the same as Stanley. 1/8, 3/16, 1/4, 5/16, 3/8, and 1/2. All are special cutters for the No. 45, two are special cutters for the No. 55, Fine ......... Sold $60.00

6. Boxed STANLEY NO. 46, SKEWED COMBINATION PLANE, Complete with all twelve cutters in their box. 99% nickel plating remains. The rosewood is crisp but some of the finish is worn on the handle. The cutters are very nice. The picture-box has some wear. Includes the original instructions, Fine++ ......... Sold $650.00

7. STANLEY NO. 46, SKEWED COMBINATION PLANE, Complete with depth stops, ten cutters and the slitter. The plane is in sound completely usable condition, and has been cleaned. A little sharpening and lapping will have the cutters ready to use. A great user, G+ ......... Sold $295.00

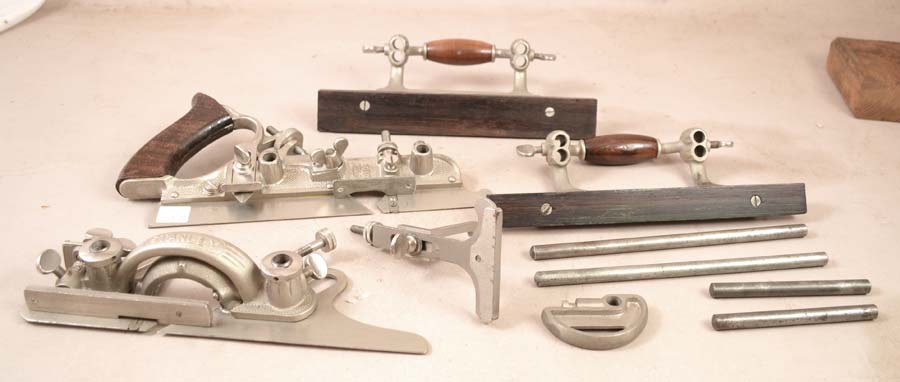

8. STANLEY NO. 55 COMBINATION PLANE, Script logo on the skate dates this to around 1915 Complete with long and short rods, three depth stops, auxiliary center bottom, cam rest, screwdriver, screwdriver, and original instructions. All 52 cutters in very good condition are in four boxes - the slitter is on the plane. Sharpen the cutters on the flat side, so you don't alter the profile.

   95% of the nickel plating remains. The rosewood handles are very crisp. The inside of one of the fences have a few scuffed grooves on the inside edge. That shouldn't effect use.

   A very nice example of a 100-year-old plane, G++ .......... $795.00
   Picture - Plane
   Picture - Other Side
   Picture - Cutters
   Picture - Cutters

Back To Tool Index Back to Homepage
